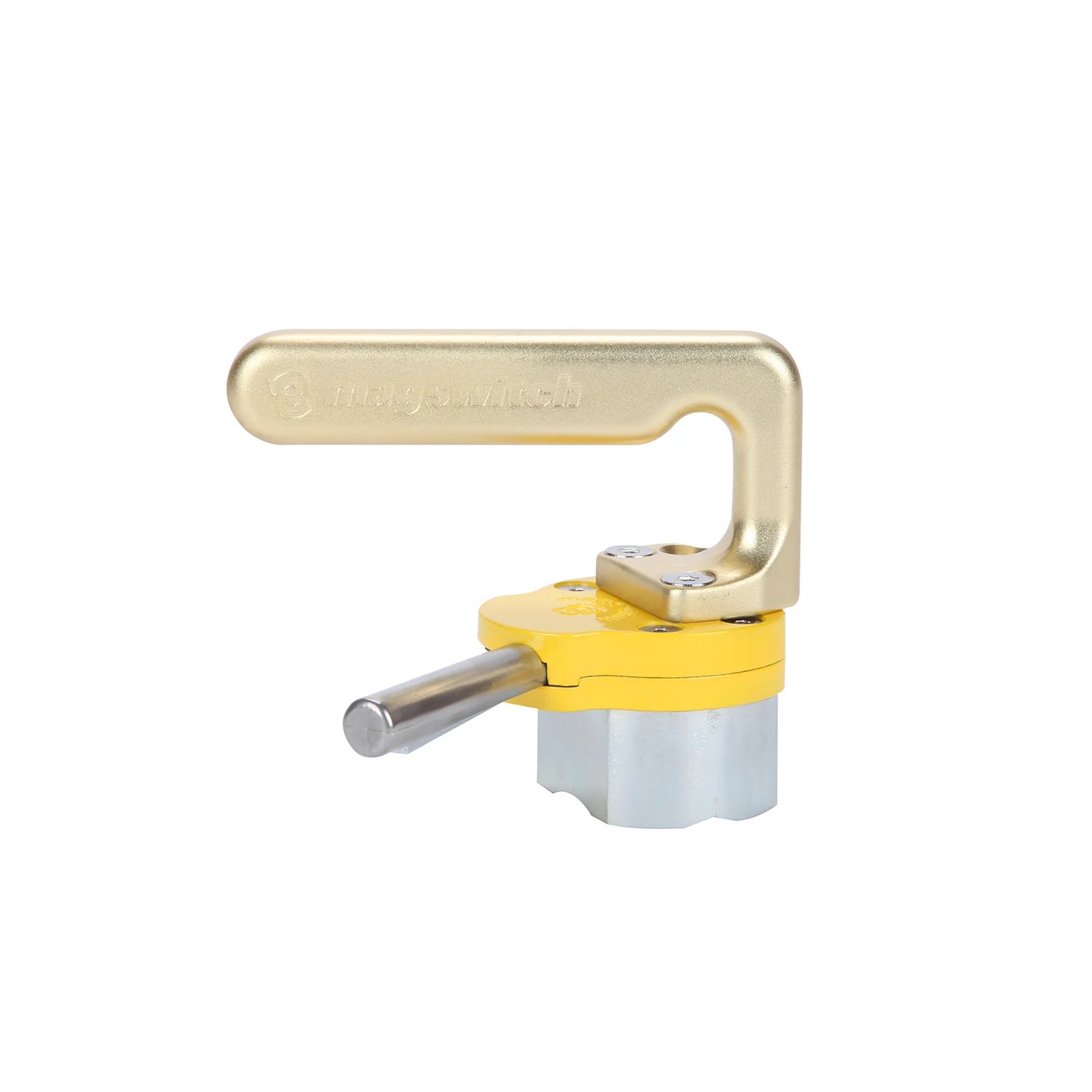

Magswitch Fixed Hand Lifter 235
Magswitch Fixed Hand Lifter 235
Sign up to place orders
ContinueAn easy one-handed operation to safely pick up and transport hot, sharp or dirty steel without touching it. Our fixed hand lifter features a locking mechanism that prevents accidental release. Easily lift a small steel sheet with 216 pounds of magnetic holding force.
FEATURES & BENEFITS
- Magnetic field turns completely on and off mechanically.
- Does not use an electrical power source.
- Magnet stays clean.
- Holds flat and round surfaces of steel.
- Lightweight and easy to use.
- Shallow field magnets allow for de-stacking of thin materials.
- Ideal for small parts from the cutting table.
SPECIFICATIONS
- Max Breakaway: 216 lbs (97.9 kg)
- 2:1 Shear Working Load: 3/16'' (4.75 mm)
- Product Weight: 1.6 lbs (0.72 kg)
- Dimensions: 6.9 x 4.9 x 4.1 in (175.2 x 124.4 x 104.1 mm)
- Magnetic Pole Footprint: 56 mm x 42 mm
