Camozzi Automation

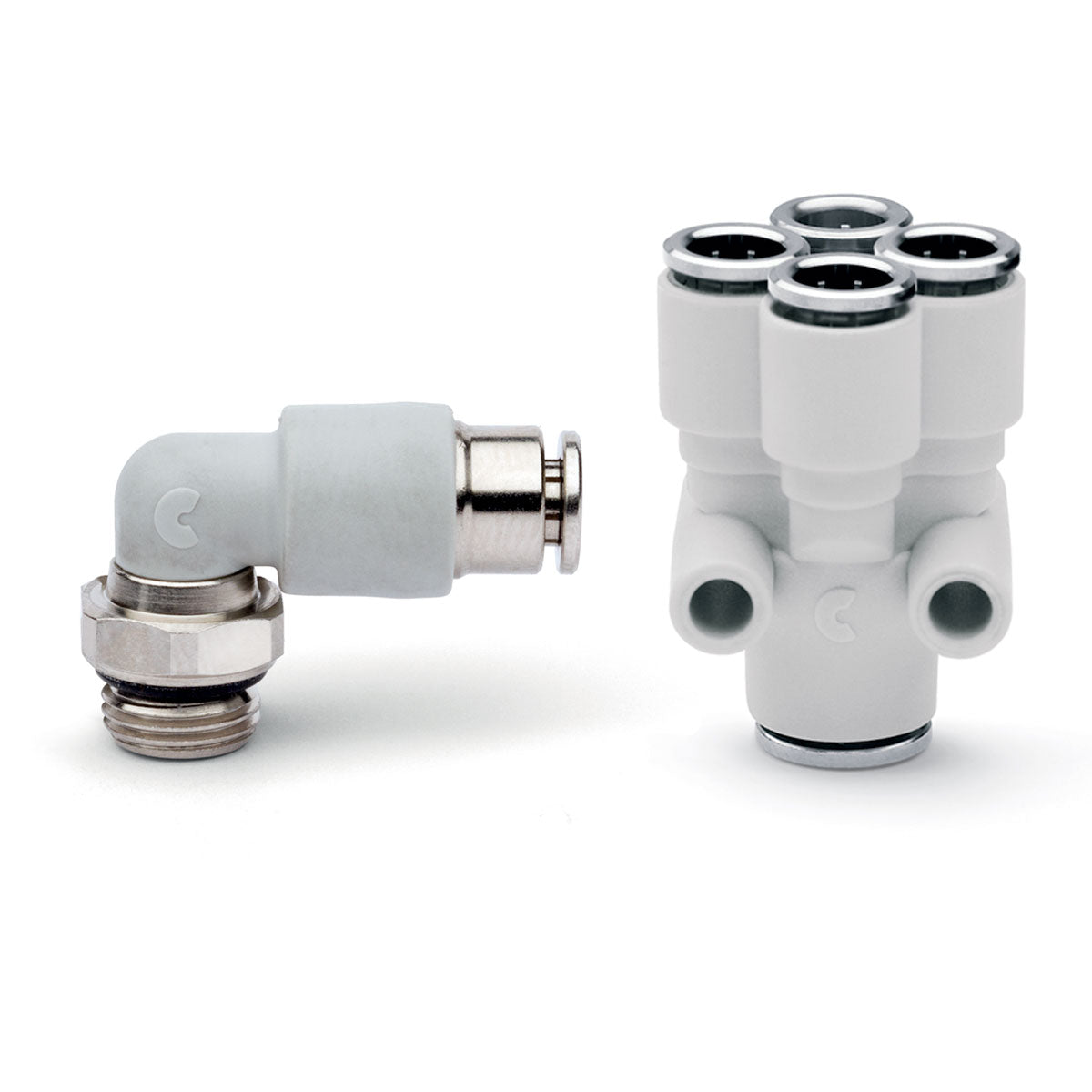

Super-rapid Compact fittings in technopolymer
Super-rapid Compact fittings in technopolymer
Sign up to place orders
ContinueSeries 7000
Tube external diameters: 4, 6, 8, 10, 12, 16 mm
Fittings threads: metric (M5, M7), BSP (G1/8, G1/4, G3/8, G1/2, G3/4)
Fittings threads: metric (M5, M7), BSP (G1/8, G1/4, G3/8, G1/2, G3/4)
Series 7000 super-rapid fittings are realized in technopolymer
Compact and lightweight, they are suitable for applications where weight can be a key factor
The special collet, which has been designed properly for this series, provides an homogeneous tight on the whole surface of plastic tubes, thus ensuring high reliability and long service life, also after connections and disconnections of the tube are repeated several times
The wide range of these fittings includes the LF version (“Stop Fitting”) which is equipped with a self-retaining device interrupting the air flow when the tube is disconnected and restores it when reconnected
Compact and lightweight, they are suitable for applications where weight can be a key factor
The special collet, which has been designed properly for this series, provides an homogeneous tight on the whole surface of plastic tubes, thus ensuring high reliability and long service life, also after connections and disconnections of the tube are repeated several times
The wide range of these fittings includes the LF version (“Stop Fitting”) which is equipped with a self-retaining device interrupting the air flow when the tube is disconnected and restores it when reconnected
